Product Model No. | VT-KB300PRO | |
CHIP | ssd202d | |
SYSTEM | Linux | |
Max equipment | 256 | |
Decoding | H.265, H.264 | |
RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps | |
PROTOCOL | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF | |
Camera Control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES | |
User Interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 | |
Four-split display | Support | |
Joystick | 4D | |
Output | RS422(Reserved), RS232(Development port), RJ45 | |
Accessories | Knob, Silicone button | |
Beep | On/off | |
Display | TFT LCD 7inches 600*1024 | |
Max camera control | Max 256 with multiple protocols including NDI/IP | |
Split screen display | 1 split screen/4 split screen | |
Verbex VT-VHD620A Camera specification | ||
Sensor | 1/2.8” | |
Effective Pixels | 2.07MP | |
Video Signals | HDMI&3G-SDI：1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94, 720P50 USB3.0： H.264：max to 1080P@60fps MJPG：max to 1080P@60fps YUY2：max to 1080P@60fps | |
Zoom | 20x optical zoom | |
Horizontal Angle | 62.3° ~ 3.46° | |
Vertical Angle | 36.1° ~ 1.92° | |
Diagonal Angle | 69.5° ~ 3.86° | |
AI Mode | Auto Framing/Presenter Tracking | |
Digital Zoom | 8X | |
Video Output | USB 3.0, HDMI, RJ45, SDI | |
Signal Standard | NTSC/PAL | |
Control Interface | RS232, RS485, USB, NET | |
Shutter | 1/30s ~ 1/10000s | |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
Backlight Compensation | Support | |
Control Protocol | VISCA, Pelco-D,Pelco-P | |
USB Protocol | UVC 1.1 | |
Horizontal Rotation | 350° (±175°) 0.1°/s～100°/s | |
Vertical Rotation | 180° (±90°)0.1°/s～80°s | |
Video Encoding Format | H.264/H.265/MJPG | |
Video Stream | Main Stream, Sub Stream | |
Main Stream Resolution | 1920×1080, 1280×720, 1024×576 , 940×540,etc. | |
Sub Stream Resolution | 1280×720, 1024×576, 720×480, 720×408,etc. | |
Audio Compression | AAC | |
Network Protocol | NDI |HX2(Optional),SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif,Visca Over IP, DHCP, Multicast, etc. | |
LAN | 1xRJ45:10M/100M Ethernet Interface,PoE(802.3af) | |
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In 1-ch: 3.5mm Audio Interface, Line Out | |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |

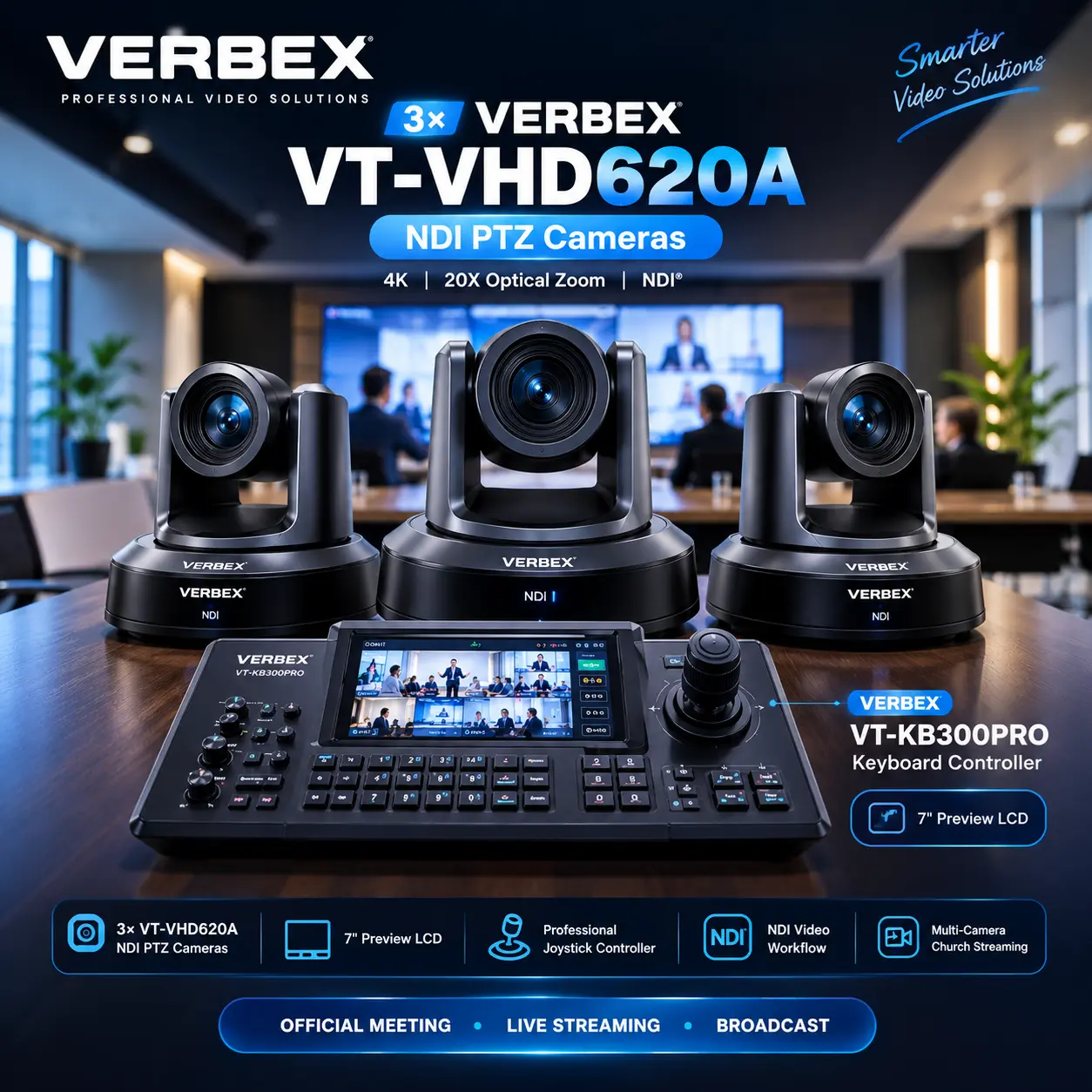

3× VERBEX VT-VHD620A + VT-KB300PRO | NDI PTZ Camera Bundle | Video Conference System Setup
3× VT-VHD620A NDI PTZ Cameras: Ultra-sharp multi-camera coverage with seamless NDI video workflow.
7″ Preview LCD Screen: Real-time multi-view monitoring directly on the console.
Professional 4D Joystick Controller: Smooth, precise pan, tilt, zoom, and speed adjustments.
Full Network Protocol Support: NDI, VISCA, VISCA-over-IP, ONVIF, Pelco-D, and Pelco-P compatibility.
Versatile Live Production Setup: Engineered for official meetings, corporate auditoriums, live broadcasts, and multi-camera streaming.
